How to Align Garage Door Sensors?

Modern garage door systems require garage door sensors as essential for safety features. They are able to identify obstructions in the garage door's path and stop it from shutting if there’s something in the way, like people, pets, or toys, so it doesn’t accidentally close on them. But if the sensors are misaligned then the garage door may not close, reverse itself unexpectedly, or become stuck.

We'll walk you through the process of realigning the sensors in this article. We'll utilize basic equipment and easy-to-follow instructions so you can realign sensors on your own and ensure the garage door sensors are functioning safely once again.

Why Garage Door Sensor Alignment Matters

It's helpful to understand the significance of the sensors before we fix them:

• Avoid Mishaps: Sensors prevent the garage door from closing on objects that are in the path, such as humans or animals.
• Protect Your House: A functional garage door ensures the safety of your home.
• Maintenance of the Equipment: Proper alignment reduces the stress on the motor and extends the life of your opener.

Signs of Misaligned Garage Door Sensors

When your sensors are not in alignment, you could observe:

• When the garage door reaches the floor then it instantly reverses.
• The wall button must be held down for the garage door to shut.
• Lights on the sensor are flickering.
• One or both sensors are completely dark.
• The garage door both opens partly and then stops, or it won't close at all.

Common Garage Door Sensor Issues



Issue	Possible Cause	Solution
Sensors not lighting up	Unplugged wiring or a lack of power	Reconnect the connections and check the power source.
Blinking lights	Misalignment of the sensor	Use a level to realign.
Dirty lenses	Cobwebs, dust, or obstruction	Use a gentle cloth to clean the lenses.
Garage Door reverses automatically	Misaligned sensors or a blocked beam	Clear the blockage and modify the sensors.
One sensor is dark	A malfunctioning sensor or a wiring problem	Fix the wiring or swap out the sensor.
Sensors don’t align	A variation in height or an angle	Use a level and adjust the height.
Loose brackets	Unalignment caused by vibration	Secure the brackets tightly.

Tools You’ll Need

You will need a few things in order to properly align garage door sensors:

• Bubble level or laser level
• A screwdriver
• Tape measure
• Sanitized microfiber cloth
• Ladder (if required)

Step-by-Step: How to Align Garage Door Sensors

Inspect for Obstructions

First of all, check the surroundings of the sensors. Get rid of anything that is obstructing the infrared beam, then use a fresh, dry cloth to wipe the lenses to clear of any cobwebs or dust.

Check the wiring

Examine the wire that is attached to both sensors. Make sure that there are no loose, frayed or disconnected wires. Replace or reconnect the wire as needed if damage wire is found.

Check Height with a Level

Both sensors need to be horizontally aligned and at the same height. By using a level make sure that each sensor is positioned equally on both sides of the garage opening.

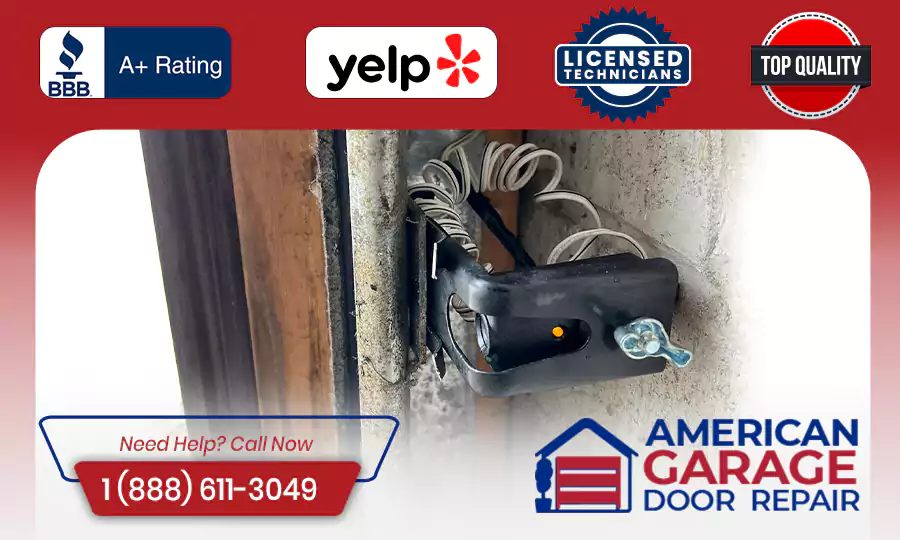

Loosen and Adjust Sensor Brackets

Every sensor is fixed to a bracket that may be adjusted:

• Remove the screw or wing nut that keeps the sensor.
• Adjust the sensor until both lights become solid, which is typically red on the receiver and green on the transmitter.
• After alignment, gently tighten the bracket.

Align the Beams of Infrared

Verify that both sensors are pointing straight at one another, without tilting upward or downward. As part of regular Garage Door Maintenance, they must be in a straight line when the infrared beam moves between them. Especially in bigger garages, use a laser level to guarantee exact alignment.

Inspect the sensor lights

Most garage door sensors come with tiny LED lights.

LED Light Status	Meaning
Solid Green (Sender)	Sensor is powered and transmitting
Solid Red (Receiver)	Sensors are properly aligned
Blinking Red/Green	Misalignment or obstruction detected
No Light	Power issue or faulty wiring

Test the garage door+

After making sure the indication lights are solid and the sensors are positioned correctly:

• Test the garage door by repeatedly opening and closing several times.
• Make sure the garage door doesn't stop suddenly or reverse.
• Inspect the wiring and bracket tightness again if problems continue.

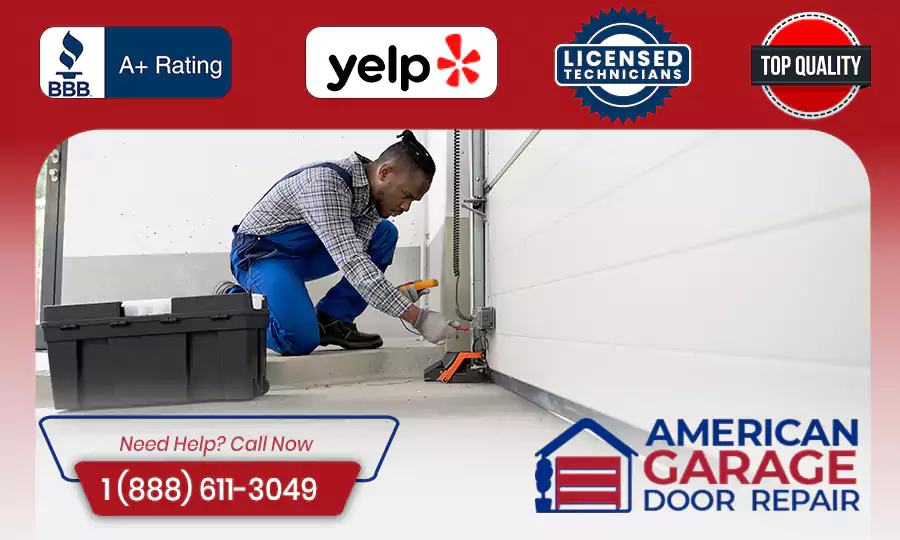

Check the Safety Reversal Function

Shut the garage door and then put a substantial item like a box, in the sensors' path. Once the beam is broken, the garage door is supposed to reverse itself. This verifies that your safety sensors are working properly.

Conclusion

Garage door sensor alignment is simple, but it's essential. This easy tutorial will help you fix typical sensor problems, get your garage door operating normally again and keep your home's entrance secure.

A more serious hardware or electrical problem may be the cause if issues continue after adjustment. Making contact with a skilled garage door specialist is the safest course of action in that situation. Maintaining the proper alignment of your garage door sensors helps to the long-term dependability, security, and stress-free performance of your sensors system.
